eufyMake UV Printer E1 Print platform movement abnormal/abnormal noise
Video link：https://youtu.be/PsU5Gow-9r4?si=UzROHfssN3Lf6d31
¶ Fault Phenomenon:
Abnormal movement or abnormal noise occurs during Y-axis motion, or a Y-axis homing (zero return) error message appears.
Error Code: 0xFD010D0002
Title: Y-axis Homing Failed
Content: Y-axis homing process has been interrupted.Pleasecheck for any obstructions on the flatbed and try again.
¶ Cause Analysis:
- Insufficient space was reserved in front of or behind the A3 platform board, causing the platform to collide with a wall during forward or backward movement in calibration.
- The protective foam on the underside of the A3 platform board was not removed, resulting in abnormal Y-axis movement.
- Foreign objects have entered the Y-axis motion module, or the module has not been maintained for an extended period.
- Abnormalities in the bottom bearings or optical axis of the A3 platform board cause resistance and abnormal movement.
- Hardware faults cause the Y-axis to fail to return to the zero position.
¶ Troubleshooting Steps:
Check whether sufficient space is reserved in front of and behind the machine. Refer to the printer placement requirements.Printer Placement Requirements

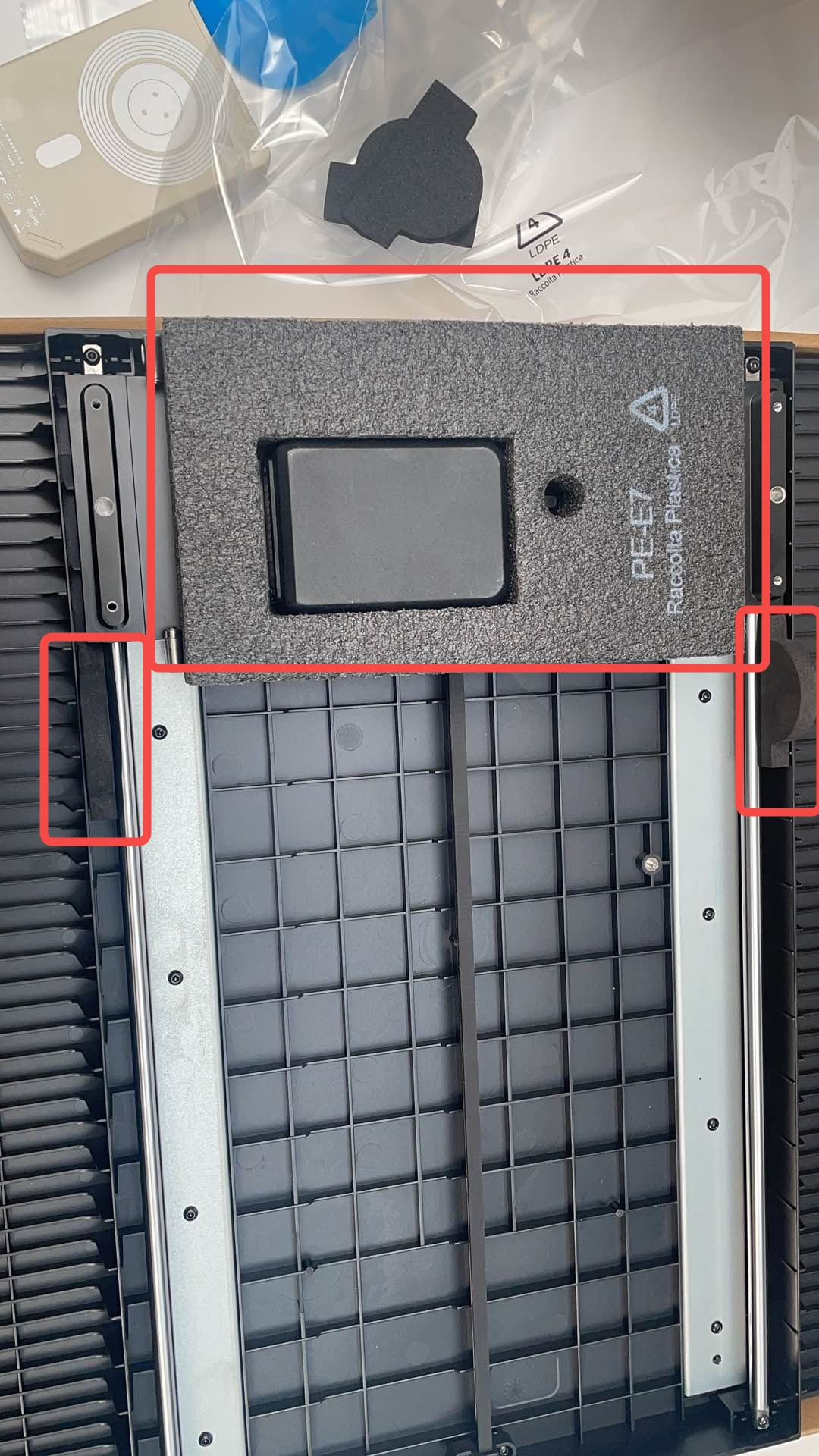

Check whether the foam on the bottom of the A3 platform board has been completely removed.
Refer to the maintenance video and perform Y-axis maintenance on the printer.
If movement of the A3 platform board or mini platform board feel restricted, test by alternating between the two platform boards.
Observe whether the Y-axis is completely stuck or can move to the end of the travel range without stopping, and record relevant videos.
If the issue persists after completing the steps above, please contact support@eufymake.com and provide the following information:
-
Product serial number (SN)
-
All troubleshooting actions performed and their results
-
Relevant photos or videos
-
App, firmware, and computer software logs
