¶ Standard flatbed
The print substrate must meet the standard flatbed platform requirements, including the maximum supported size, height, and weight.
Before placing the substrate, ensure the flatbed platform is locked correctly to avoid safety issues such as movement or accidental drops.
The substrate should be positioned on the standard adhesive mat to keep it securely fixed during printing.
Tutorial for using the standard adhesive mat Flatbed Adhesive Mat
| Print substrate type | Planar object |
|---|---|
| Print size range | 420mm*330mm（16inch*13inch） |
| Print height | 60mm(3.15in), height range within 2mm(0.08in) of the upper surface (unable to print uneven objects) |
| Maximum load capacity | 1.5kg |
| Substrate placement/positioning requirements | Place steadily with no curled edges, and ensure it is positioned within the adhesive mat coordinate frame |
| Multi-substrate placement requirements | Keep sufficient spacing between substrates, greater than 5mm (0.2in), and place substrates of the same type & height. |

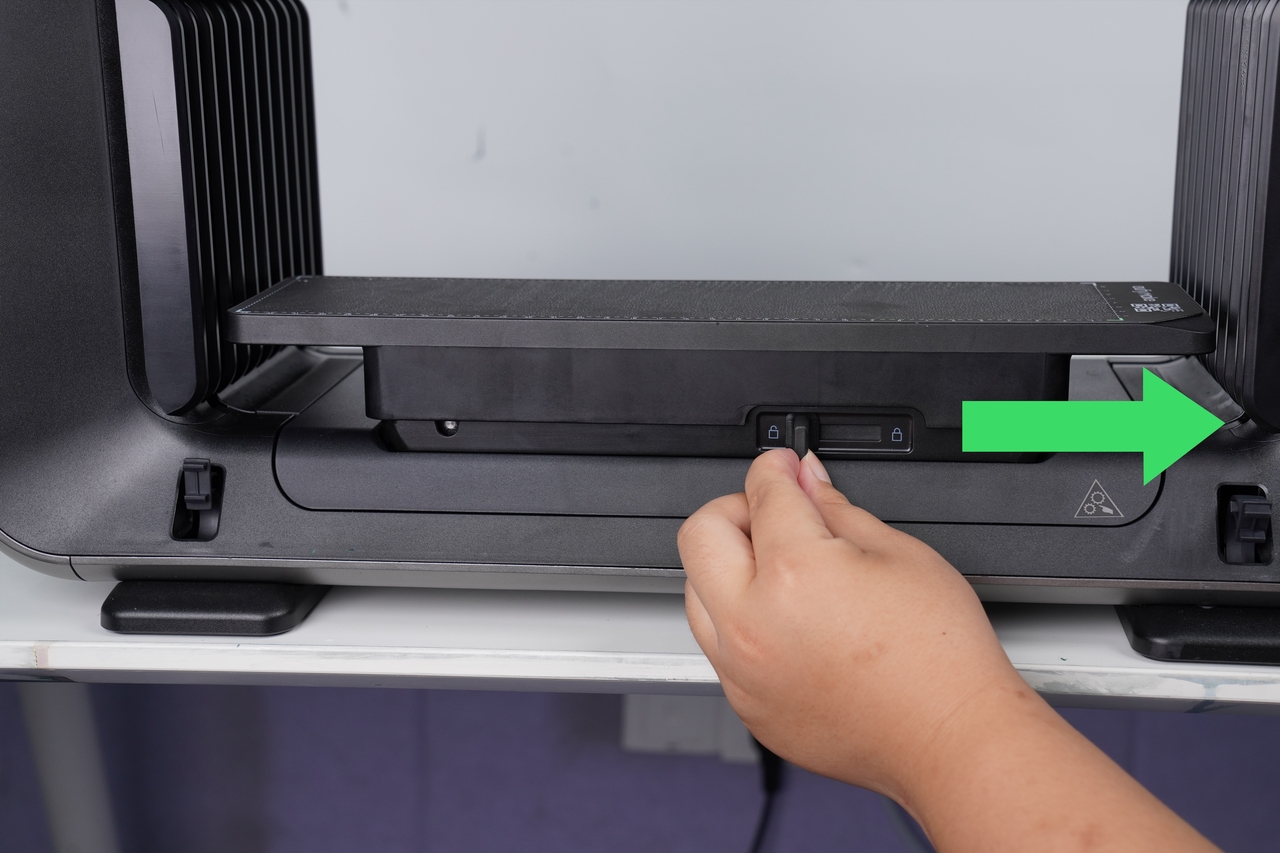

¶ Lock Stand Flatbed Platform

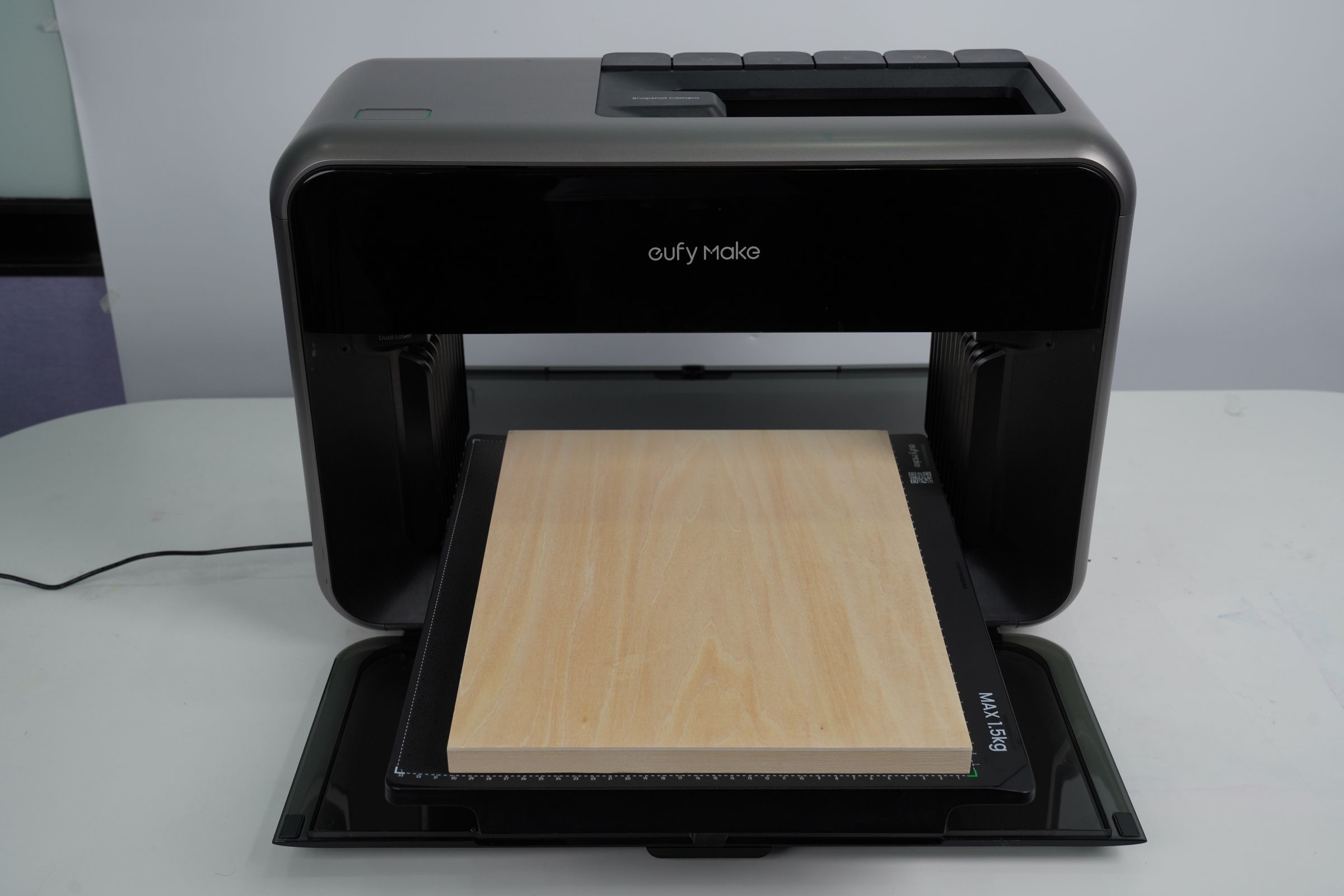

¶ Place the substrate in the coordinate frame
¶ Mini flatbed
The substrate needs to meet the requirements of the mini flatbed platform maximum printing size, height and weight range , and confirm that the mini flatbed platform is locked before placing ; the substrate needs to be placed on the mini adhesion mat for fixing.
Tutorial for using the mini flatbed mat Flatbed Adhesive Mat
| Print substrate type | Hard flat object |
|---|---|
| Print size range | 330mm*90mm(13in*3.54in) |
| Print height | 80mm(3.15in), within 2mm(0.08in) from the upper surface |
| Maximum load capacity | 1.5kg |
| Substrate placement/positioning requirements | Place steadily with no curled edges, and ensure it is positioned within the adhesive mat coordinate frame |
| Multi-substrate placement requirements | Keep sufficient spacing between substrates, greater than 5mm (0.2in), and place substrates of the same type |

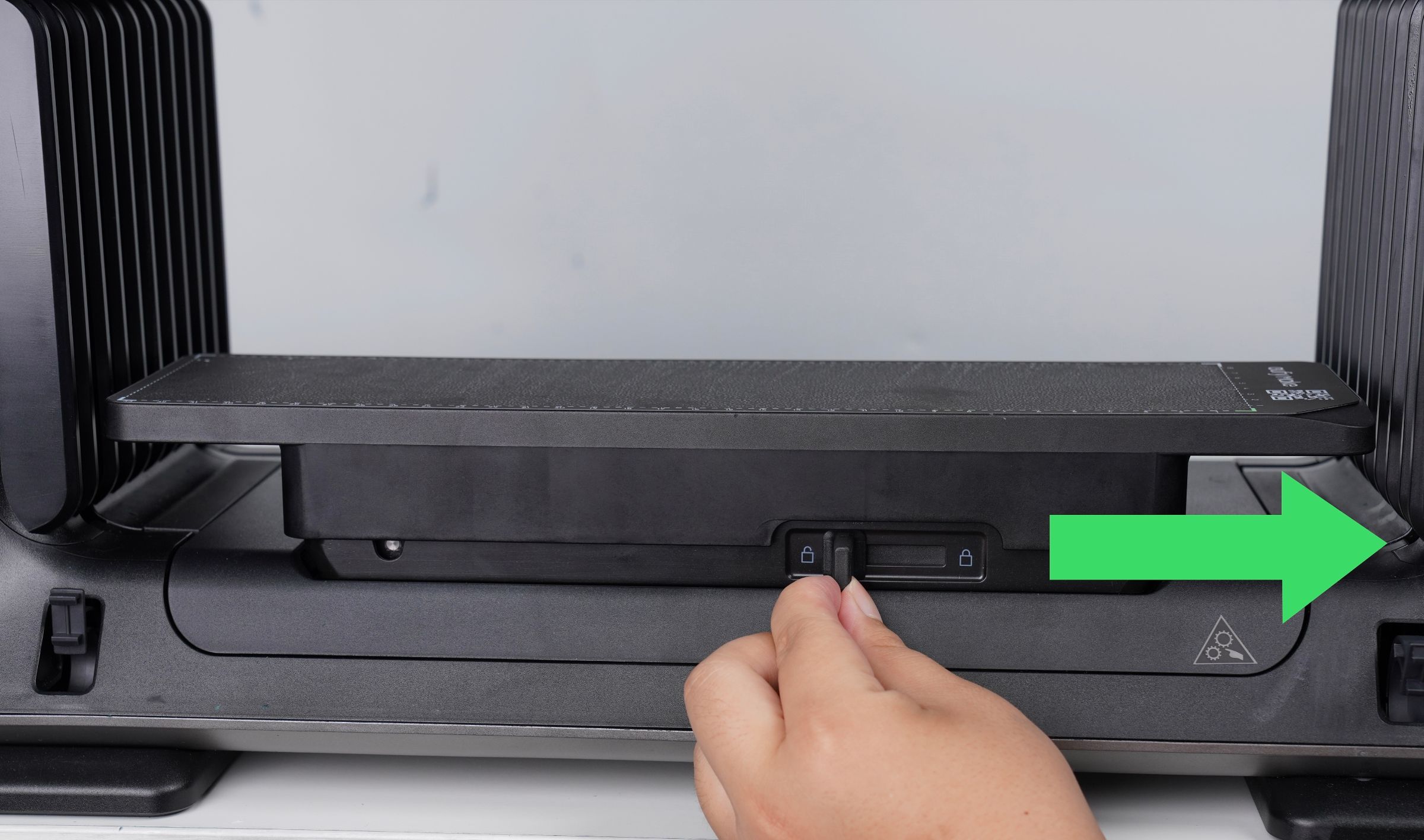

¶ Lock the mini platform plate

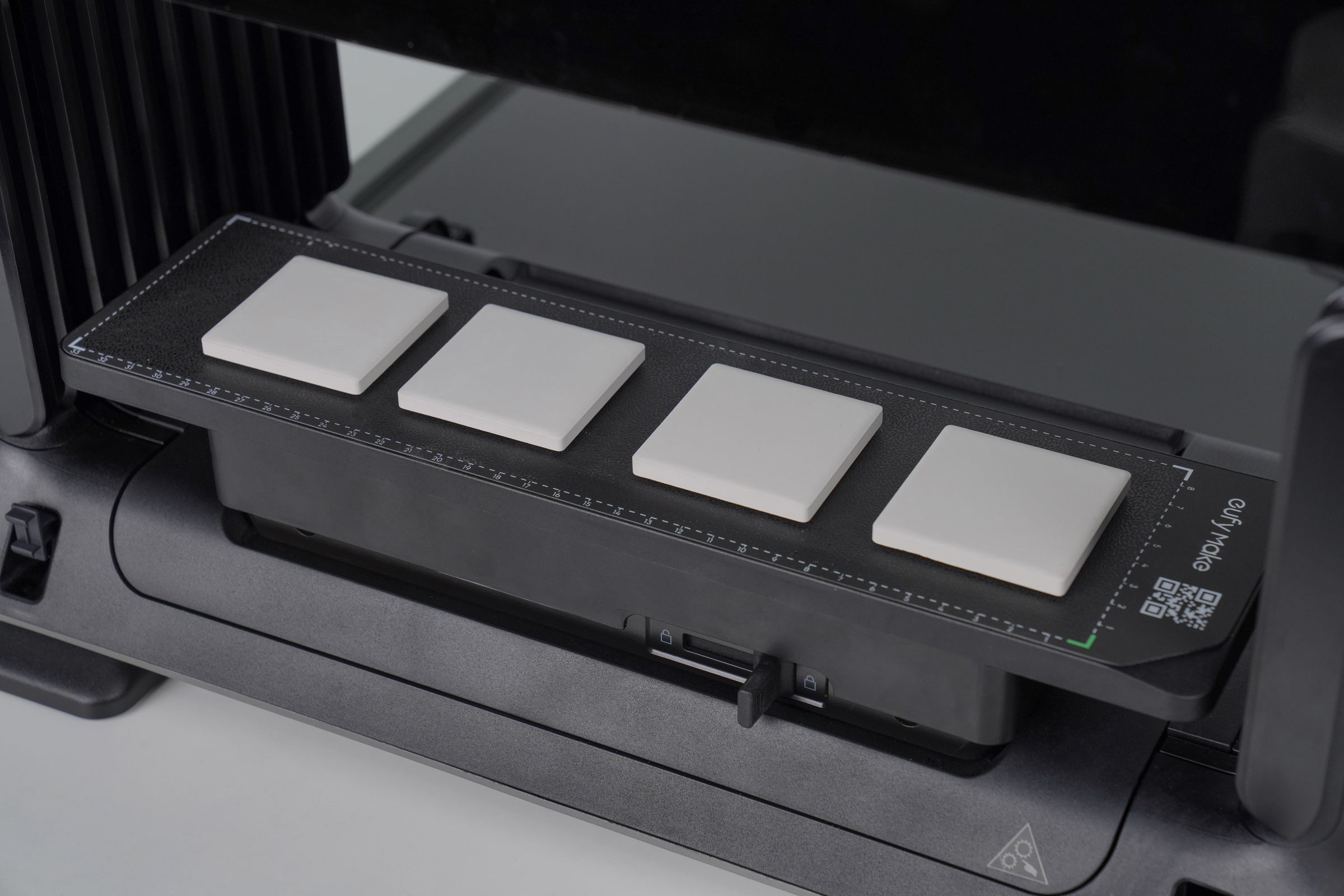

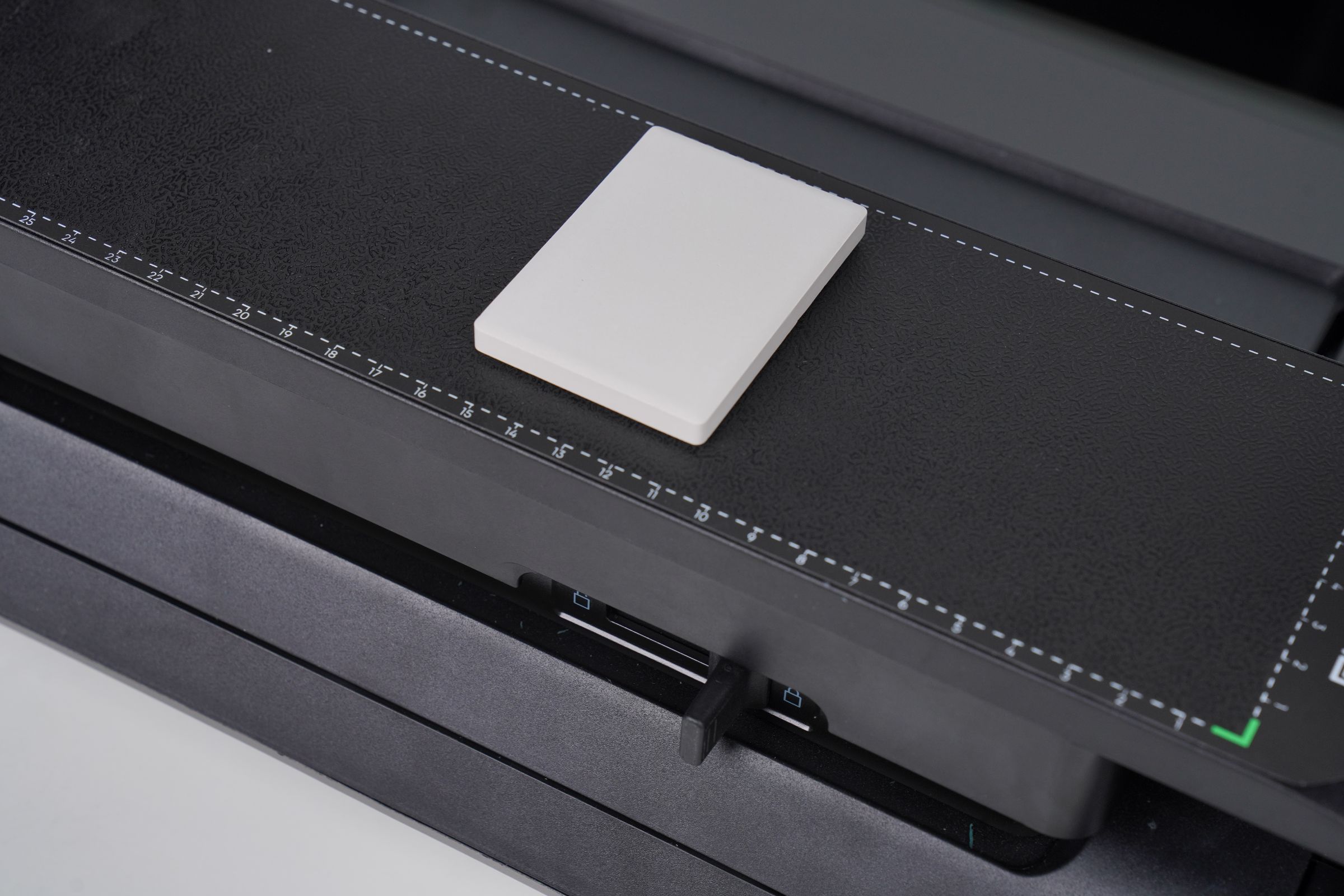

¶ Place the substrate within the coordinate frame
